Connector End Views and part numbers

Information compiled by R. Sondecker
Additional information available from www.ctsowners.com

Audio connectors

2004 CTS Audio Connector End Views

U66 = Non-BOSE
U57 = BOSE
UAV = Navigation (US)
U2X & U2Y = Navigation (Export)
U2K & U2L = XM Radio
LY9 = 2.6L Engine (Export)
LA3 = 3.2L Engine
LY7 = 3.6L Engine
LS6 = 5.7L Engine (V-series)

Table 1: Audio Amplifier C1 (U66)
Table 2: Audio Amplifier C2 (U66)
Table 3: Audio Amplifier C3 (U66)
Table 4: Audio Amplifier C1 (U57)
Table 5: Audio Amplifier C2 (U57)
Table 6: Audio Amplifier C3 (U57)
Table 7: Digital Radio Receiver (U2K/U2L)
Table 8: Noise Compensation Microphone (U57)
Table 9: Radio C1
Table 10: Radio C2
Table 11: Radio C3
Table 12: Radio C4 (Export w/U2X/U2Y)
Table 13: Radio Antenna Module
Table 14: Speaker - Front Center (U57)
Table 15: Speaker - Left A Pillar Tweeter (U57)
Table 16: Speaker - Left A Pillar Tweeter (U66)
Table 17: Speaker - Right A Pillar Tweeter (U57)
Table 18: Speaker - Right A Pillar Tweeter (U66)
Table 19: Speaker - LF Door (U57)
Table 20: Speaker - LF Door (U66)
Table 21: Speaker - RF Door (U57)
Table 22: Speaker - RF Door (U66)
Table 23: Speaker - LR Door
Table 24: Speaker - RR Door
Table 25: Speaker - Rear Subwoofer (U57)
Table 26: Speaker - Rear Subwoofer (U66)
Table 27: Steering Wheel Controls - Left (LY9/LA3/LY7)
Table 28: Steering Wheel Controls - Left (LS6)
Table 29: Steering Wheel Controls - Right (LY9/LA3/LY7)
Table 30: Steering Wheel Controls - Right (LS6)

Audio Amplifier C1 (U66)

Object Number: 35456 Size: CH

Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BK/WH

851

Ground

B

RD/BK

1242

Battery Positive Voltage

Audio Amplifier C2 (U66)

Object Number: 73152 Size: CH

Connector Part Information
  • 12084945
  • 16-Way F Micro-Pack 100 Series (GY)

Pin

Wire Color

Circuit No.

Function

A1-A2

--

--

Not Used

A3

D-GN

1953

Right Front Midrange Speaker Output (-)

A4

OG

1853

Right Front Midrange Speaker Output (+)

A5

OG

1955

Right Rear Midrange Speaker Output (-)

A6

TN

1855

Right Rear Midrange Speaker Output (+)

A7

WH

1959

Left Rear Midrange Speaker Output (-)

A8

TN

1859

Left Rear Midrange Speaker Output (+)

B1

D-BU

658

Cellular Telephone Voice Signal (UE1)

B2

L-BU/BK

659

Cellular Telephone Voice Low Reference (UE1)

B3-B8

--

--

Not Used

Audio Amplifier C3 (U66)

Object Number: 130690 Size: CH

Connector Part Information
  • 12110206
  • 24-Way F Micro-Pack 100 Series (L-BU)

Pin

Wire Color

Circuit No.

Function

A1

PU

1952

Right Front Tweeter Speaker Output (-)

A2

L-GN

1852

Right Front Tweeter Speaker Output (+)

A3

TN

1856

Left Front Tweeter Speaker Output (+)

A4

YE

1956

Left Front Tweeter Speaker Output (-)

A5

D-BU

1857

Left Front Midrange Speaker Output (+)

A6

L-BU

1957

Left Front Midrange Speaker Output (-)

A7

D-BU/WH

346

Rear Subwoofer Speaker Coil 1 Output (+)

A8

L-GN/BK

1794

Rear Subwoofer Speaker Coil 1 Output (-)

A9

D-GN

1795

Rear Subwoofer Speaker Coil 2 Output (+)

A10

L-BU/BK

315

Rear Subwoofer Speaker Coil 2 Output (-)

A11-A12

--

--

Not Used

B1-B3

--

--

Not Used

B4

L-GN

1948

Right Low Level Audio Signal (-)

B5

L-GN

512

Right Low Level Audio Signal (+)

B6

D-GN

1947

Left Low Level Audio Signal (-)

B7

TN

511

Left Low Level Audio Signal (+)

B8-B10

--

--

Not Used

B11

PU

1807

Class 2 Serial Data

B12

--

--

Not Used

Audio Amplifier C1 (U57)

Object Number: 73158 Size: CH

Connector Part Information
  • 12110626
  • 8-Way F Metri-Pack 280 Series, Flexlock (GY)

Pin

Wire Color

Circuit No.

Function

A

BK/WH

851

Ground

B

D-BU/WH

346

Rear Subwoofer Speaker Output (+)

C-F

--

--

Not Used

G

L-GN/BK

1794

Rear Subwoofer Speaker Output (-)

H

RD/BK

1242

Battery Positive Voltage

Audio Amplifier C2 (U57)

Object Number: 130690 Size: CH

Connector Part Information
  • 12110206
  • 24-Way F Micro-Pack 100 Series (L-BU)

Pin

Wire Color

Circuit No.

Function

A1

--

--

Not Used

A2

WH

1959

Left Rear Midrange Speaker Output (-)

A3

TN

1859

Left Rear Midrange Speaker Output (+)

A4

TN

1856

Left Front Tweeter Speaker Output (+)

A5

YE

1956

Left Front Tweeter Speaker Output (-)

A6

L-BU

1960

Front Center Speaker Output (-)

A7

YE

1860

Front Center Speaker Output (+)

A8

PU

1952

Right Front Tweeter Speaker Output (-)

A9

L-GN

1852

Right Front Tweeter Speaker Output (+)

A10

TN

1855

Right Rear Midrange Speaker Output (+)

A11

OR

1955

Right Rear Midrange Speaker Output (-)

A12

L-BU/BK

659

Cellular Telephone Voice Low Reference (UE1)

B1-B7

--

--

Not Used

B8

L-GN

1948

Right Low Level Audio Signal (-)

B9

D-GN

1947

Left Low Level Audio Signal (-)

B10

TN

511

Left Low Level Audio Signal (+)

B11

L-GN

512

Right Low Level Audio Signal (+)

B12

D-BU

658

Cellular Telephone Voice Signal (UE1)

Audio Amplifier C3 (U57)

Object Number: 280764 Size: CH

Connector Part Information
  • 12064993
  • 6-Way F Micro-Pack 100 Series (BK)

Pin

Wire Color

Circuit No.

Function

5

--

--

Not Used

6

PU

1807

Class 2 Serial Data

7

BARE

1489

Drain Wire

8

D-GN

1488

Noise Compensation Microphone Supply Voltage

9

WH

5343

Navigation Audio Signal (-) (UAV/U2X/U2Y)

10

YE

5342

Navigation Audio Signal (+) (UAV/U2X/U2Y)

Digital Radio Receiver (U2K/U2L)

Object Number: 850856 Size: CH

Connector Part Information
  • 15394155 correction
  • 16-Way F Micro 64 (BK)

Pin

Wire Color

Circuit No.

Function

1

--

--

Not Used

2

TN/WH

372

Audio Common

3

BN/WH

367

Left Audio Signal (+)

4-8

--

--

Not Used

9

BK

850

Ground

10

D-GN/WH

368

Right Audio Signal (+)

11-14

--

--

Not USed

15

PU

1807

Class 2 Serial Data

16

RD/WH

2240

Battery Positive Voltage

Noise Compensation Microphone (U57)

Object Number: 35441 Size: CH

Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BARE

1489

Drain Wire

B

D-GN

1488

Noise Compensation Microphone Supply Voltage

Radio C1

Object Number: 815047 Size: CH

Connector Part Information
  • 30220700
  • 20-Way F DCS-2 Tri-Color (YE/GN/BU)

Pin

Wire Color

Circuit No.

Function

1

--

--

Not Used

2

BARE

5344

Drain Wire (UAV/U2X/U2Y)

3

--

--

Not Used

4

YE

5342

Navigation Audio Signal (+) (UAV/U2X/U2Y)

5

OG

1544

Information Up Switch Signal (LY9/LA3/LY7)

6

PK

5149

Cellular Microphone Signal (UAV)

GY

655

Cellular Microphone Signal (U2Y/U2X)

7

--

--

Not Used

8

PU

1807

Class 2 Serial Data

9

PK/BK

5152

Cellular Microphone Low Reference (UAV)

BARE

1782

Drain Wire (U2Y/U2X)

10

--

--

Not Used

11

PU

1807

Class 2 Serial Data

12

PK

1545

Information Down Switch Signal (LY9/LA3/LY7)

13

D-BU

1796

Steering Wheel Controls Signal (LY9/LA3/LY7)

14

D-GN

5142

Modem Tx (UAV) (Not Used)

15

--

--

Not Used

16

WH

5343

Navigation Audio Signal (-) (UAV/U2X/U2Y)

17

L-BU

5141

Modem Rx (UAV) (Not Used)

18

--

--

Not Used

19

OG

1486

FM Composite Signal

20

YE/BK

5143

Modem Ground (UAV) (Not Used)

Radio C2

Object Number: 895622 Size: CH

Connector Part Information
  • 963121-1
  • 8-Way F Junior Timer Type (BN)

Pin

Wire Color

Circuit No.

Function

1

--

--

Not Used

2

BARE

2012

Drain Wire

3

L-GN

512

Right Low Level Audio Signal (+)

4

L-GN

1948

Right Low Level Audio Signal (-)

5

TN

511

Left Low Level Audio Signal (+)

6

D-GN

1947

Left Low Level Audio Signal (-)

7

BN

818

Vehicle Speed Signal (UAV/U2X/U2Y)

8

BARE

2011

Drain Wire

Radio C3

Object Number: 895623 Size: CH

Connector Part Information
  • 963120-1
  • 8-Way F Junior Timer Type (GY)

Pin

Wire Color

Circuit No.

Function

1

BN/WH

367

Left Audio Signal (+) (U2K/U2L)

2

PU

1375

Remote Radio Control Supply Voltage (LY9/LA3/LY7)

3

D-GN/WH

368

Right Audio Signal (+) (U2K/U2L)

4

TN/WH

372

Audio Common (U2K/U2L)

5

PK

5165

SW Antenna Enable (Export w/U2X)

6

BARE

5324

Drain Wire (U2K/U2L)

7

RD/WH

2240

Battery Positive Voltage

8

BK/WH

851

Ground

Radio C4 (Export w/U2X/U2Y)

Object Number: 815050 Size: CH

Connector Part Information
  • 39-01-2295
  • 22-Way F Mini-Fit Jr. (WH)

Pin

Wire Color

Circuit No.

Function

1-5

--

--

Not Used

6

OR

2047

Video Red Signal (+)

7

TN

5146

Video Red Signal (-)

8

D-BU

2048

Video Green Signal (+)

9

BN

5145

Video Green Signal (-)

10

D-GN

2049

Video Blue Signal (+)

11

GY

5144

Video Blue Signal (-)

12-14

--

--

Not Used

15

BN

2355

Navigation Display Serial Data Low (Japan w/U2X)

16

OG

2354

Navigation Display Serial Data High (Japan w/U2X)

17-19

--

--

Not Used

20

L-GN

2045

Video Synchronization Signal (+)

21

TN/BK

5147

Video Synchronization Signal (-)

22

--

--

Not Used

Radio Antenna Module

Object Number: 890598 Size: CH

Connector Part Information
  • 12186246
  • 3-Way F Micro-Pack (WH)

Pin

Wire Color

Circuit No.

Function

1

RD/WH

3640

Battery Positive Voltage

2

OG

1486

FM Composite Signal

3

PU

1807

Class 2 Serial Data

Speaker - Front Center (U57)

Object Number: 82383 Size: CH

Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

L-BU

1960

Front Center Speaker Output (-)

B

YE

1860

Front Center Speaker Output (+)

Speaker - Left A Pillar Tweeter (U57)

Object Number: 82383 Size: CH

Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

YE

1956

Left Front Tweeter Speaker Output (-)

B

TN

1856

Left Front Tweeter Speaker Output (+)

Speaker - Left A Pillar Tweeter (U66)

Object Number: 280768 Size: CH

Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

YE

1956

Left Front Tweeter Speaker Output (-)

B

TN

1856

Left Front Tweeter Speaker Output (+)

Speaker - Right A Pillar Tweeter (U57)

Object Number: 82383 Size: CH

Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

PU

1952

Right Front Tweeter Speaker Output (-)

B

L-GN

1852

Right Front Tweeter Speaker Output (+)

Speaker - Right A Pillar Tweeter (U66)

Object Number: 280768 Size: CH

Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

PU

1952

Right Front Tweeter Speaker Output (-)

B

L-GN

1852

Right Front Tweeter Speaker Output (+)
>

Speaker - LF Door (U57)

Object Number: 280768 Size: CH

Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

YE

1956

Left Front Tweeter Speaker Output (+)

B

TN

1856

Left Front Tweeter Speaker Output (+)

Speaker - LF Door (U66)

Object Number: 130687 Size: CH

Connector Part Information
  • 12064867
  • 2-Way F Metri-Pack 150 Series (WH)

Pin

Wire Color

Circuit No.

Function

A

L-BU

1957

Left Front Midrange Speaker Output (-)

B

D-BU

1857

Left Front Midrange Speaker Output (+)

Speaker - RF Door (U57)

Object Number: 280768 Size: CH

Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

PU

1952

Right Front Tweeter Speaker Output (-)

B

L-GN

1852

Right Front Tweeter Speaker Output (+)

Speaker - RF Door (U66)

Object Number: 130687 Size: CH

Connector Part Information
  • 12064867
  • 2-Way F Metri-Pack 150 Series (WH)

Pin

Wire Color

Circuit No.

Function

A

D-GN

1953

Right Front Midrange Speaker Output (-)

B

OG

1853

Right Front Midrange Speaker Output (+)

Speaker - LR Door

Object Number: 280768 Size: CH

Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

WH

1959

Left Rear Midrange Speaker Output (-)

B

TN

1859

Left Rear Midrange Speaker Output (+)

Speaker - RR Door

Object Number: 280768 Size: CH

Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

OG

1955

Right Rear Midrange Speaker Output (-)

B

TN

1855

Right Rear Midrange Speaker Output (+)

Speaker - Rear Subwoofer (U57)

Object Number: 39667 Size: CH

Connector Part Information
  • 12129136
  • 4-Way F Metri-Pack 280 Series Flexlock (BK)

Pin

Wire Color

Circuit No.

Function

A

D-BU/WH

346

Rear Subwoofer Speaker Output (+)

B

L-GN/BK

1794

Rear Subwoofer Speaker Output (-)

C-D

--

--

Not Used

Speaker - Rear Subwoofer (U66)

Object Number: 130637 Size: CH

Connector Part Information
  • 12064760
  • 4-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

L-GN/BK

1794

Rear Subwoofer Speaker Coil 1 Output (-)

B

D-BU/WH

346

Rear Subwoofer Speaker Coil 1 Output (+)

C

L-BU/BK

315

Rear Subwoofer Speaker Coil 2 Output (-)

D

D-GN

1795

Rear Subwoofer Speaker Coil 2 Output (+)

Steering Wheel Controls - Left (LY9/LA3/LY7)

Object Number: 605502 Size: CH

Connector Part Information
  • 50-57-9404
  • 4-Way F Molex (BK)

Pin

Wire Color

Circuit No.

Function

1

D-BU

1375

Remote Radio Control Supply Voltage

2

D-BU

1796

Steering Wheel Controls Signal

3

YE

1491

Backlight Lamps Control

4

BK

350

Ground

Steering Wheel Controls - Left (LS6)

Object Number: 605502 Size: CH

Connector Part Information
  • 50-57-9404
  • 4-Way F Molex (BK)

Pin

Wire Color

Circuit No.

Function

1

BK

351

Ground

2

BK

350

Ground

3

YE

1491

Backlight Lamps Control

4

OG/BK

5201

Steering Wheel Controls Signal

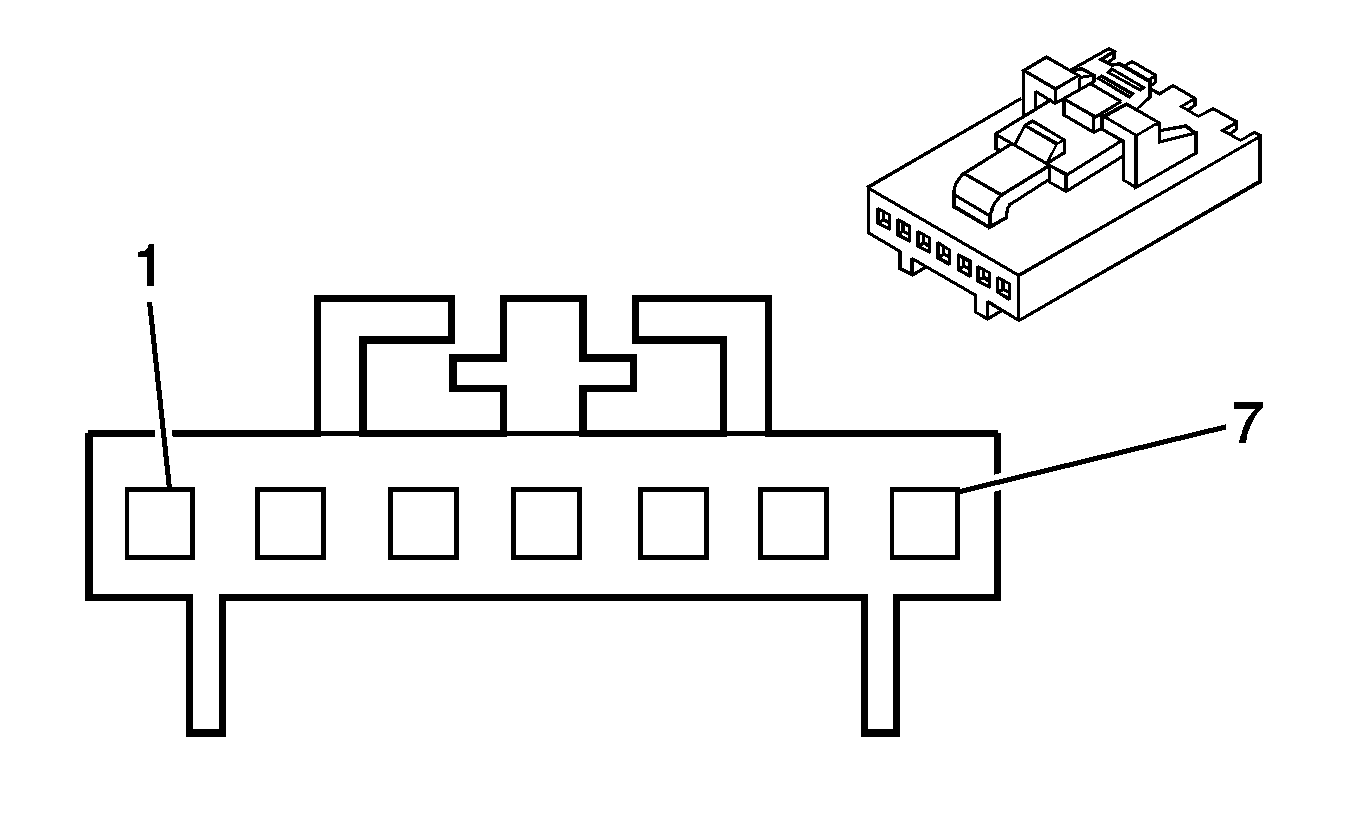

Steering Wheel Controls - Right (LY9/LA3/LY7)

Object Number: 1333392 Size: CH

Connector Part Information
  • 50-57-9407
  • 7-Way F Molex (BK)

Pin

Wire Color

Circuit No.

Function

1

YE

1491

Backlight Lamps Control

2

BK

350

Ground

3

OG

1544

Information Up Switch Signal

4

PK

1545

Information Down Switch Signal

5

PU

1375

Remote Radio Control Supply Voltage

6

D-BU

1375

Remote Radio Control Supply Voltage

7

D-BU

1796

Steering Wheel Controls Signal

Steering Wheel Controls - Right (LS6)

Object Number: 1333392 Size: CH

Connector Part Information
  • 50-57-9407
  • 7-Way F Molex (BK)

Pin

Wire Color

Circuit No.

Function

1

PK

339

Ignition 1 Voltage

2

OG

87

Cruise Control Resume/Accel Switch Signal

3

PU

84

Cruise Control Set/Coast Switch Signal

4

PK

397

Cruise Control On Switch Signal

5

BK

350

Ground

6

YE

1491

Backlight Lamps Control

7

--

--

Not Used


This site is not affiliated with General Motors or Cadillac. All trademarks are property of their respective owners.
All pages copyright www.cadillacfaq.com.
Donate to keep this site live and ad free Here
 Main Page--- List Style FAQ--- Document Library--- Image Library--- Video Library--- Vendor/Mod List--- DealerRank--- V Newsletter--- Other Links
For questions or comments email ctsvett@earthlink.net
